CMD-G series (Motor driven medium-pressure medium-capacity dosing pump) double head type
Features
Two diaphragms operated by one motor
* Much discharge rate with the same power (one motor).
* Lessen pulsation by dosing from two pump head to one line.
* Two flow-rate adjustment dials for two pump heads to control each discharge rate independently.
* This pump can be equipped with two different combination of liquid-end material to dose two different fluids by one pump.
* It is possible to keep initial and running costs lower to improve cost merit.
Remark for use
* Both pump heads (diaphragms) shall be the same diameter. It means that both discharge rates shall not be so different.
* Since the driving motor is one, each of the dosing cannot be stopped during operation. Be careful about operation with automatic control such as ON-OFF control by output signal from controllers.
Model and specifications
0.2kW Motor
| Model | Discharge rate (mL/min) |
Max. discharge pressure (MPaG) |
Head dia. / Diaphragm dia. (mm) |
Stroke frequency (spm) (Reduction ratio) |
Max. stroke length (mm) |
Motor (W) |
Weight (kg) |
||
|---|---|---|---|---|---|---|---|---|---|
| 60Hz | 50Hz | 60Hz | 50Hz | ||||||
| CMD-3G | 12 to 60 | 10 to 50 | 1.0 (single-phase), 1.5 (3-phase) | φ70/φ39 | 35 (1/50) | 29 (1/50) | 2 | Single- phase or 3-phase, 0.2kW | Approx. 21 |
| CMD-7G | 28 to 140 | 24 to 116 | 4 | ||||||
| CMD-12G | 48 to 240 | 40 to 200 | 58 (1/30) | 48 (1/30) | |||||
| CMD-30G | 120 to 600 | 100 to 500 | 0.5 (single-phase), 1.0 (3-phase) | φ110/φ90 | 35 (1/50) | 29 (1/50) | Approx. 22 |
||
| CMD-60G | 240 to 1200 | 200 to 1000 | 7 | ||||||
| CMD-100G | 400 to 2000 | 320 to 1600 | 58 (1/30) | 48 (1/30) | |||||
| CMD-200G | 800 to 4000 | 640 to 3200 | 0.5 | φ150/φ120 | 3-phase 0.2kW | Approx. 25 |
|||
0.4kW Motor
| Model | Discharge rate (mL/min) |
Max. discharge pressure (MPaG) |
Head dia. / Diaphragm dia. (mm) |
Stroke frequency (spm) (Reduction ratio) |
Max. stroke length (mm) |
Motor (W) |
Weight (kg) |
||
|---|---|---|---|---|---|---|---|---|---|
| 60Hz | 50Hz | 60Hz | 50Hz | ||||||
| CMD-3G | 12 to 60 | 10 to 50 | 1.5 | φ70/φ39 | 35 (1/50) | 29 (1/50) | 2 | 3-phase, 0.4kW | Approx. 22 |
| CMD-7G | 28 to 140 | 24 to 116 | 4 | ||||||
| CMD-12G | 48 to 240 | 40 to 200 | 58 (1/30) | 48 (1/30) | |||||
| CMD-30G | 120 to 600 | 100 to 500 | 1.0 | φ110/φ90 | 35 (1/50) | 29 (1/50) | Approx. 23 |
||
| CMD-60G | 240 to 1200 | 200 to 1000 | 7 | ||||||
| CMD-100G | 400 to 2000 | 320 to 1600 | 58 (1/30) | 48 (1/30) | |||||
| CMD-200G | 800 to 4000 | 640 to 3200 | 0.5 | φ150/φ120 | Approx. 26 |
||||
| CMD-350G | 1400 to 7000 | 1200 to 5800 | 12 | ||||||
| CMD-500G | 2000 to 10000 | 1600 to 8000 | 112 (1/16) | 87 (1/16) | 8 | ||||
| CMD-700G | 2800 to 14000 | 2400 to 11600 | 12 | ||||||
* The discharge rate was calculated at discharge pressure of 0.1MPaG, suction head of -0.01MPaAq equivalent to the same pipe diameter as in the pump; and normal temperature using clear water.
* For use with flange connection, the discharge pressure of CMD-3G to 12G should be 1.0MPaG maximum.
* Discharge rates of CMD series are twice of CM series. There is no hose connection and single-phase motor type for CMD-200G to 700G.
Common specifications
| Connection | Hose |
(3G to 12G) Dia. 4 x 6mm polyethylene or Dia.4 x 9mm braided soft PVC (Dia. 6 x 11mm braided soft PVC hose for XV46, XXU, 444 type) |
|---|---|---|
| (30G to 100G) Dia. 6 x 9mm polyethylene or Dia. 6 x 11mm braided soft PVC | ||
| Flange | (3G to 100G) JIS 10K flange, 15A | |
| (200G, 350G) JIS 10K flange, 20A | ||
| (500G, 700G) JIS 10K flange, 25A | ||
| Motor | Standard | 0.2kW, 3-phase, 4P, class E, 60Hz (200, 220V), 50Hz (200V), TEFC outdoor flange type |
| Semi-standard | 0.2kW, Single-phase, 4P, class E, 60Hz (100, 110V), 50Hz (100V), TEFC outdoor flange type |
|
| 0.2kW, Single-phase, 4P, class E, 60Hz (200, 220V), 50Hz (200V), TEFC outdoor flange type |
||
| 0.2kW, 7-rated 3-phase, 4P, class E, 60Hz (380, 400, 440V), 50Hz (380, 400, 415, 420V), TEFC outdoor flange type |
||
| 0.2kW or 0.4kW, 3-phase, 4P, class E, 60Hz (200, 220V), 50Hz (200V), safety-increase explosion-proof outdoor flange type |
||
| 0.4kW, 3-phase, 4P, class E, 60Hz (200, 220V), 50Hz (200V), pressure and explosion-proof outdoor flange type |
||
| Reducer | Worm gear reduction type, lubricated with viscosity 320mm2/s (cSt) worm gear oil | |
| Standard accessories | Hose | Foot valve (except for XXU, XXU6, 444, 4446 combination), Ball-type anti-siphonage valve (except for XXU, XXU6, 444, 4446 combination), Hose x 4m, Simple tools, Mounting bolts and nuts (w/ washers, M8 x 30L) x 4 sets, Operating instructions, Air extract pump, Air extract hose (PE 0.85m) (for 3G to 12G, VVFC and VVE4 combination) |
| Flange | Simple tools, Mounting bolts and nuts (w/ washers, M8 x 30L) x 4 sets, Operating instructions, Air extract pump, Air extract hose (PE 0.85m) (for 3G to 12G, VVFC and VVE4 conbination) |
|
| Color | Munsell 2.5PB 5/2 for motor & reducer | |
Standard liquid-end materials
| Part name | VVFC | VVE4 | XV46/VV46 | XXU/XXU6 | 444/4446 | |
|---|---|---|---|---|---|---|
| Applicable chemicals | Sodium hypochlorite, Ferric chloride, PAC, Aluminum sulfate, Ferrous sulfate, Ferric sulfate |
Hydrochloric acid, Sulfuric acid, Nitric acid, Other strong acid |
Sodium hydroxide, Ammonia water |
Polymer flocculants, Sodium hydroxide, Ammonia water |
Slaked lime, Sludge, Powdered activated carbon (sorution) |
Methanol |
| Pump head | PVC | PVC + SUS seat (XV46), PVC (VV46) |
PVC + SUS seat | SUS304 | ||
| Diaphragm | PTFE | (30G to 100G) EPDM, (Others) PTFE |
PTFE | |||
| Connector | PVC | PVC + SUS | SUS304 | |||
| Valve seat | FKM | EPDM | - | |||
| Check ball | Ceramics | SUS304 | Urethane | SUS304 | ||
| Spring | - | SUS316 | - / SUS316 | |||
| O-ring, Packing | Aflas | PTFE | ||||
| Hose connection | Dia. 4 x 9mm or 6 x 11mm braided soft PVC | Dia. 4 x 6mm or 6 x 9mm PE | Dia. 4 x 9mm or 6 x 9mm braided soft PVC | Dia. 6 x 11mm braided soft PVC | Dia. 4 x 9mm or 6 x 9mm braided soft PVC | |
| Flange connection | (3G to 100G) 15A, (200G, 350G) 20A, (500G, 700G) 25A, JIS 10K flange | |||||
* Since chemical resistance of material varies according to temperature and concentration of fluid, the above applicable chemicals are basic examples. It is possible to combine different materials.
* Aflas is a kind of fluoro rubber.
* Since there are two kinds of connection hose for VVFC combination, for selection, specify a chemical name or hose size to be used.
* If Sight Glass is needed for CMD-3G to 12G, make a special order to equip a pump with it.Do not use CMD-G series for organic solvent
Viscosity of fluid
Refer to the chart below for transfer high-viscous fluid such as Polymer flocculants.
| Connection | Dia. 6 x 11mm hose | Flange | Liquid-end combination |
|---|---|---|---|
| CMD-3G to 12G | 200mPa.s (cP) max. | (15A) 800mPa.s (cP) max. | XV46 |
| CMD-30G | 80mPa.s (cP) max. | VV46 | |
| CMD-60G,100G | Not used | ||
| CMD-200G,350G | - | (20A) 800mPa.s (cP) max. | |
| CMD-500G,700G | (25A) 800mPa.s (cP) max. |

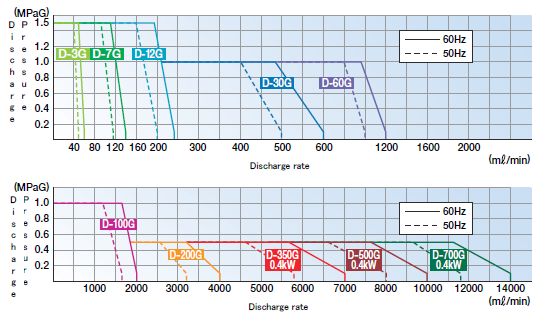

Expected discharge rate chart
The chart below is to indicate expected discharge rates of CMD-G series using clear water. (The expected discharge rates are subject to change according to the chemical solution to be used, solution temperature, pump installing condition, etc.)
0.2kW Motor(D-350G to 700G 0.4kW Motor)
* Inform us of the following items when you place an order for CM-G series.
| Model | Chemical to be used | Power source | Connection | Others |
|---|---|---|---|---|
| CMD-__G | Name, concentration, temperature | __V, __-phase, __Hz | Hose diameter or flange | Remark |
