* Compact constant feeder. (YAF) mainly for inorganic flocculant.
* Stable feeding by volumetric table feeder method.
* Stable feeding from fine powder to granular.
* Equipped with the rake for bridge prevention.
* Economical 60W motor.
* Further stable feeding with dry air.

Standard specification chart

	YAF
Control system	Inverter control
Motor	Indoor type 60W 3 φ AC200V
Powder end material	SUS304, PVC
Hopper	15L, 30L, 60L, Transparent PVC

*AC400V class is applicable

Model explanation

YAF	–	M10	V	–	15	–	PL
		[1]			[2]		[3]

[1]Feed capacity
Model *1	Feed rate(g/h)	Revolution rate	Disk type
YAF-M4	90～450	1/1800	M
YAF-M10	200～1,000	1/750	M
YAF-M22	450～2,250	1/360	M
YAF-M45	900～4,500	1/180	M
YAF-M100	2,000～10,000	1/75	M
YAF-U30	750～3,000	1/1800	U
YAF-U75	1,875～7,500	1/750	U
YAF-U150	3,750～15,000	1/360	U
YAF-U300	7,500～30,000	1/180	U
YAF-U750	18,750～75,000	1/75	U
[2]Hopper capacity
15	15L
30	30L
60	60L
[3]Option
P	Inner purge air *2
L	Powder level sensor
D	Dry air unit (separate installation)

*1 M or U type is selected depending on the powder properties.(M type：Powder U type：Powder, Granular)
*2 M type only

* Variable range is 1:5(12~60Hz) for M type, 1:4(15Hz~60Hz) for U type.
* The feed rate is theological value as the powder bulk density at 1.0. It may vary from the above feed rate depending on powder apparent specific gravity or property etc.

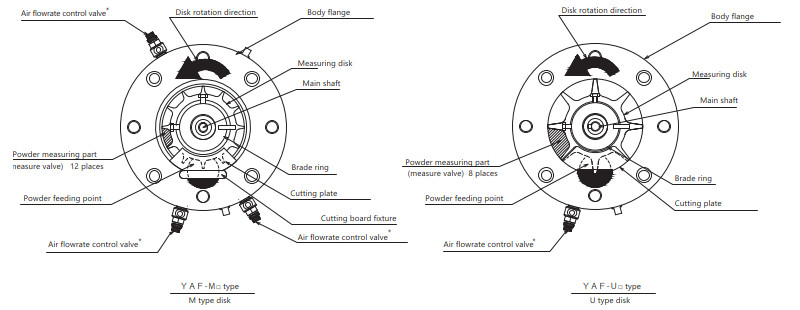

The feeder feeds a fixed quantity of powder measured on a measuring disk by cutting and_ sweeping off with a cutting disk in proportion to the volume of measures and_ the revolving speed of measuring disk. It is wide variety of capacity types in combination of the various measuring disks (M & U type) and_ reducers. The below is the sectional  drawing for internal structure of body for YAF-M□ type and_ YAF-U□ type.
* Air flowrate control valve is option.
