Automatic powder dissolving unit (Y/PAD)
Powder auto dissolver(Volumetric table feeder type)
* Dissolver equipped with compact constant feeder (YAF) mainly for inorganic flocculant.
* Stable feeding by volumetric table feeder method.
Features
* Dissolver equipped with compact constant feeder (YAF) mainly for inorganic flocculant.
* Stable feeding by volumetric table feeder method.
* Compact design with only one dissolving tank.
* Economical 60W motor for feeder
* Safe and easy operation by stable control system developed by PAD for many years
* Automatic operation just after installation.

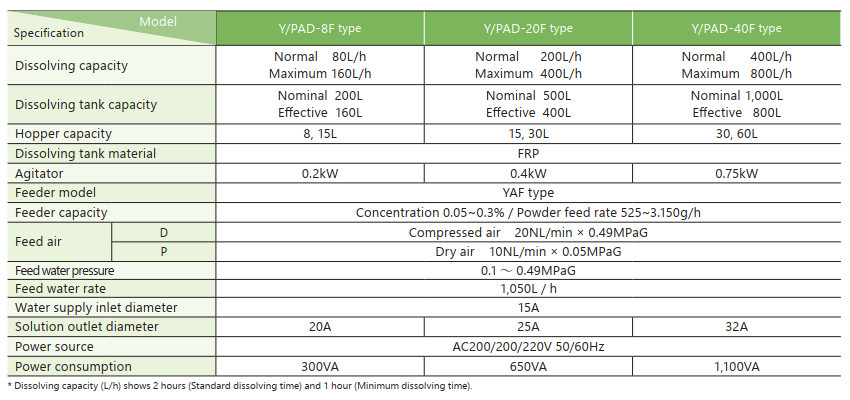

specification
model
Y/PAD | – | D | 8 | F | – | 15 | – | H | – | 20 | 6 |
---|---|---|---|---|---|---|---|---|---|---|---|
[1] | [2] | [3] | [4] | [5] | [6] | [7] |
[1] Dissolving capacity | ||||
---|---|---|---|---|
D | Compressed air feed type(w/ dry air) | |||
P | Dry air feed type(w/o dry air) | |||
[2] Dissolving tank capacity | ||||
Model | Capcity | |||
8 | 160 | |||
20 | 400 | |||
40 | 800 | |||
[3] Dissolving tank material | ||||
Model | Capacity | |||
F | Molded FRP | |||
[4] Hopper capacity | ||||
Model(Capacity) | 8 | 20 | 40 | |
15(15L) | ○ | |||
30(30L) | ○ | ○ | ○ | |
60(60L) | ○ | ○ | ||
[5] Option | ||||
Blank | Nil | |||
A | Individual output | |||
F | Powder level sensor | |||
H | w/HH | |||
N | Nozzle change | |||
O | Orientation change | |||
Z | Others | |||
[6] Voltage | ||||
20 | AC200V | |||
22 | AC220V | |||
38 | AC380V | |||
40 | AC400V | |||
41 | AC415V | |||
44 | AC440V | |||
44 | AC440V | |||
[7] Frequency | ||||
5 | 50Hz | |||
6 | 60Hz |

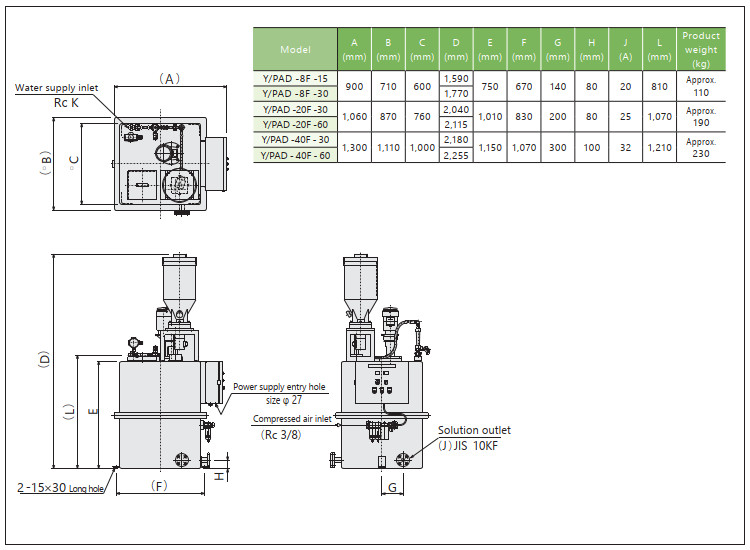

Dimentional outline drawing

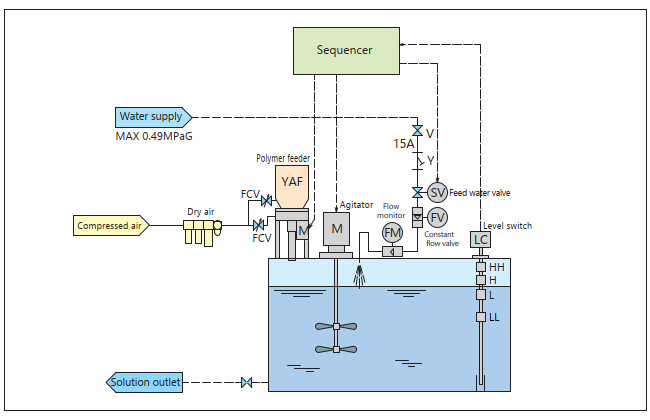

Flow sheet
