PE tank (TXS)

✔ All the models are made of Polyethylene to ensure rigidity and shock resistance.
✔ TXS series are composed of 3 models TXS-25, 50 and 100, possible to complete a compact unit with electromagnetic metering pump(s) of Tohkemy and ProMinent.

Features

●All the models are made of Polyethylene to ensure rigidity and shock resistance.
●TXS series are composed of 3 models TXS-25, 50 and 100, possible to complete a compact unit with electromagnetic metering pump(s) of Tohkemy and ProMinent.

Improved user-friendliness

1) Standardly equipped with level gauge.
2) Two pumps can be installed (on TXS-50/100).
3) The capacity has been increased by 20% compared to the former models, making replenishment convenient. [e.g. It is possible to fill 3 x 18L container in TXS-50.}
4) Standardly equipped with a level switch seat and liquid return port, no post-processing is required.
5) Fixed seats included. (3 for TXS-25, 4 for TXS-50/100)

Improved safety

1) Black lid with high resistance.
2) Attaching a padlock to the rid prevents the lid from opening easily.
3) By tilting the back, liquid does not spill on the front (pump).

Option

1) Front cover
2) Padlock
3) Level gauge w/ valve
4) Operation panel*1
5) Level switch*2
*1 Please contact us for the specification of operation panel.
*2 Selectable from the model TL on the page 68.

specification

Model	Material	capacity	Weight	Applicable pump model
TXS-25	PE	30L	about 7kg	MP-L and_ CM-1 to 25V* ProMinent Beta and_ gamma * CM-V can be installed on TXS-50/100 only
TXS-50		60L	about 12kg
TXS-100		120L	about 18kg

* Install the chemical tank in a place with ambient temperature and_ liquid temperature of 0 to 40℃ where it is not exposed to direct sunlight. Applicable liquid specific gravity 1.3 max.
* Hydrochloric acid cannot be used for this tank

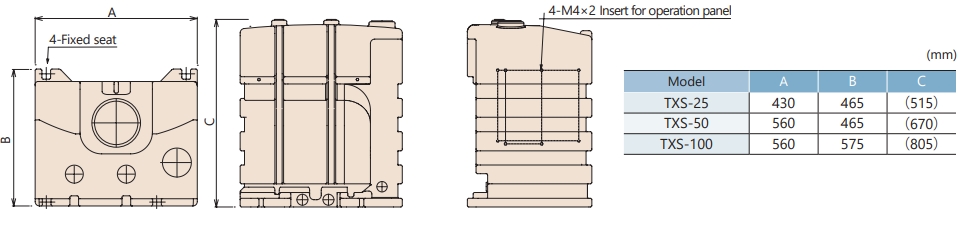

Tank dimensions

System flow

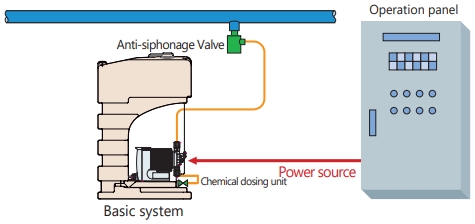

Basic system
This is the most basic system_ for dosing chemicals simply by supplying power using electromagnetic diaphragm metering pump.

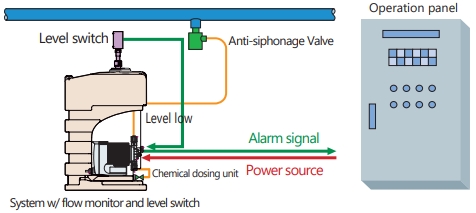

Systems with flow monitor _and level switch
This system_ adds an optional flow monitor to the applicable electromagnetic diaphragm metering pump that can be directly connected to the level switch to detect defective discharge of chemicals. The specification to stop the pump when the tank level is low can be selected, and_ an alarm signal can be output to the outside when the tank level is low and/or the chemical discharge is poor.

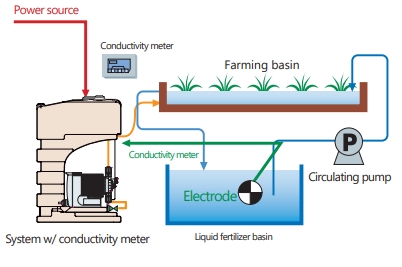

Chemical injection _system with conductivity meter
This system adds an optional conductivity meter built in a panel attached to the side of tank. The electromagnetic diaphragm metering pump is controlled by the conductivity meter in the system, most applicable for supplying liquid fertilizer in hydroponics. In addition to the conductivity meter, a 24-hour cycle time switch can be built into the panel. In the cooling tower system, the blow valve is controlled by the conductivity meter, and_ the pump is turned on and_ off by the time switch for chemical dosing.
