Small agitator TFN type

✔ For chemical tank installation (for 100L or 200L tank)
✔ Two types of reduction ratios, 1/5 and 1/20, are available.
✔ Two types of wetted parts, SUS304 and SUS304 + rubber lining, are available.

Features

● Standard lineup of SUS304 and rubber lining for both impellers and shafts
● Selectable from two types, medium-speed and low-speed rotation
● Excellent agitating effect by the impeller shape that can be selected according to the rotation speed

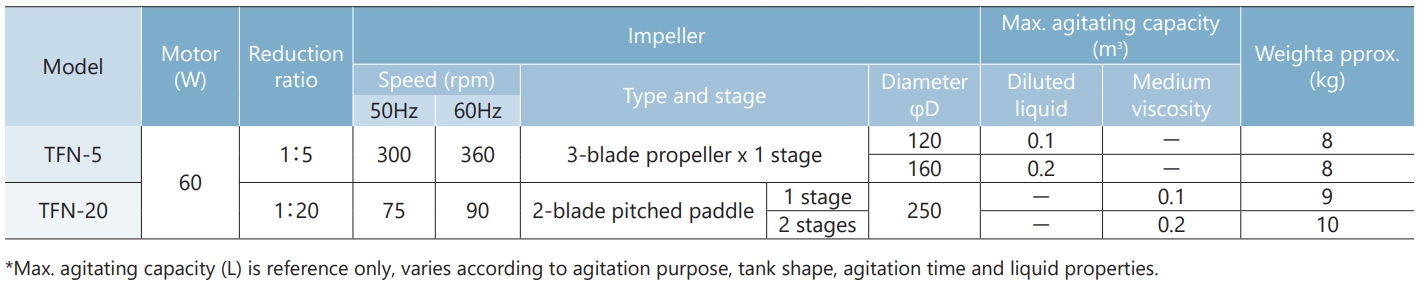

Model and specifications

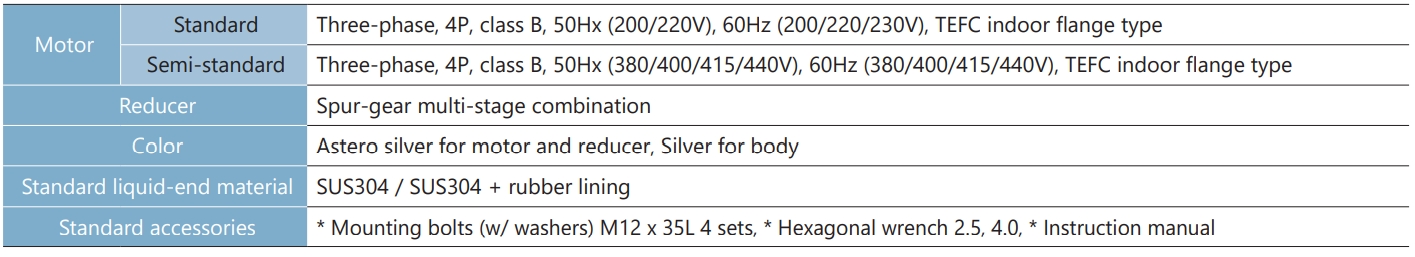

Common specifications

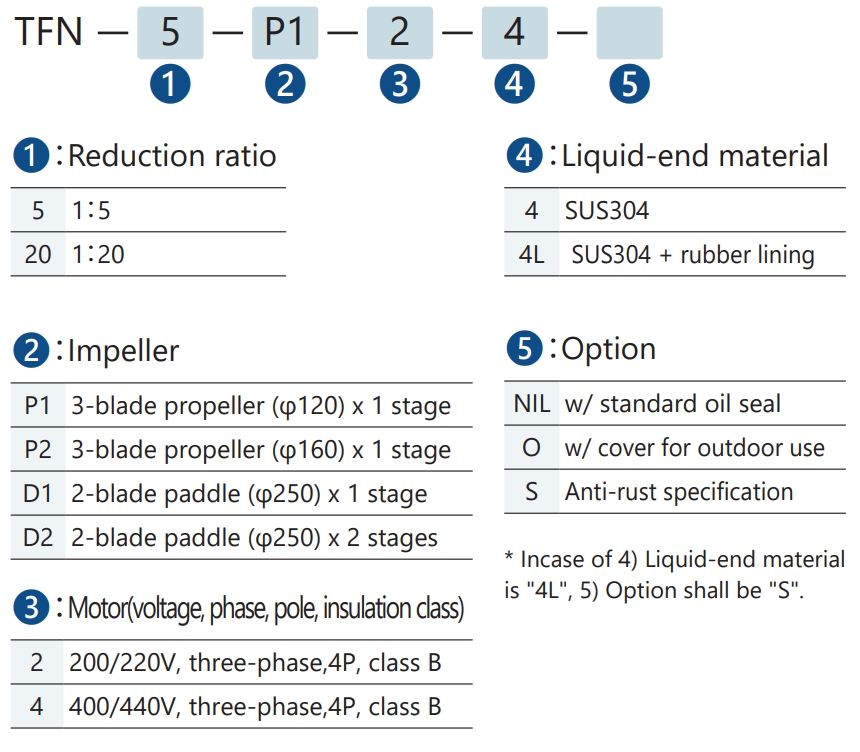

Model Code Explanation

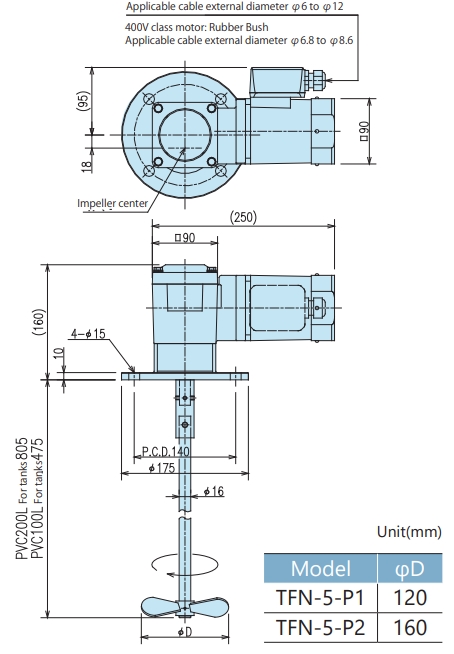

Dimensions
