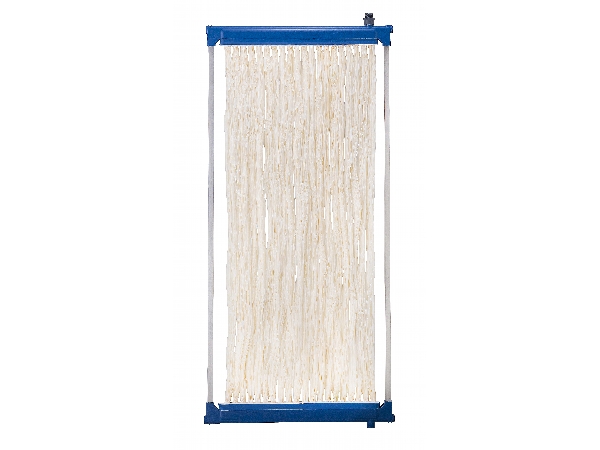

Super Micro Filter (SMF) naked type

A hollow fiber membrane module that can be used not only as an immersion membrane for water purification, but also as an MBR (Membrane Bio Reactor), which is attracting attention for wastewater treatment.

Features

1. Small installation scale _and space saving
By a large membrane area with 20m2/module, the entire space for equipment can be smaller.

2. Corresponding to the increase in treated water volume
The immersion membrane device can easily handle the treated water increase by increasing additional module.

3. Stable treated water quality
Stable treated water quality can be ensured even if the quality of raw water deteriorates during rainfall in rivers _or if sedimentation is poor [bulking] during wastewater treatment.

4. Enables water recycle
A PVDF membrane with a nominal pore size of 0.05 μm provides clear treated water that can be used directly as miscellaneous water.

5. Supports concentrated recovery of various scenes
It can also be used for concentrated recovery of highly additive products such as rare metals and SS concentration of filtered backwash water.

Use

Physical processing

・ A water purification facility with raw water of a river which turbidity rises sharply when it rains.
・ Improvement of water recovery rate by concentrating _and collecting backwash wastewater from the filter
・ Improvement of water quality in existing water purification facilities
・ Recycling wastewater such as miscellaneous wastewater

MBR
・ Responding to the increase in drainage due to increased production
・ Measures against bulking _and improvement of treated water quality
・ Improvement of water quality in existing water purification facilities
・ Reuse as reclaimed water

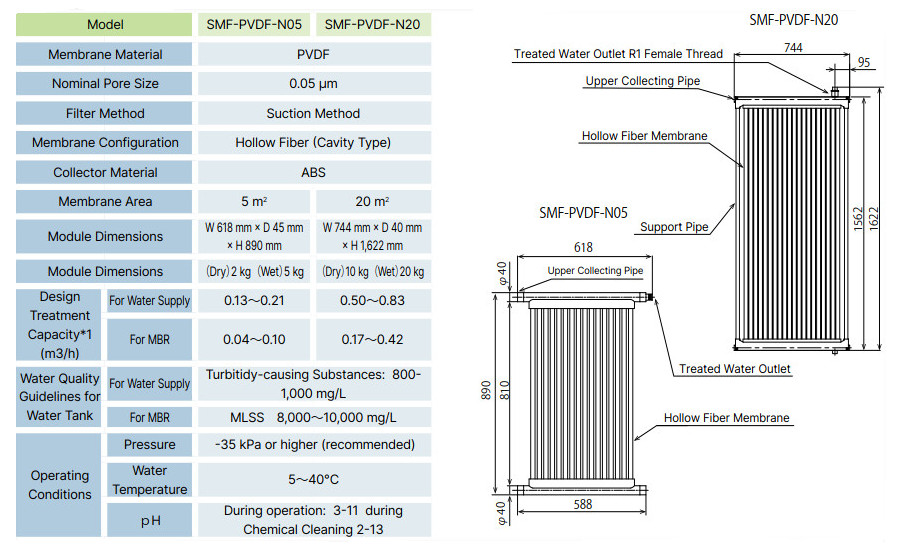

Specification

Product Specifications

Model SMF-PVDF-N20
Membrane material PVDF
Nominal pore diameter 0.05μm
Membrane area 20m2/Module
Estimated amount of treated water When used as a submerged membrane 0.66 – 0.83m3/h
When used as an MBR 0.25 – 0.33m3/h
Estimated raw water quality Water　Raw water concentration 800 – 1,000mg/L
Drainage　MLSS 8,000 – 10,000mg/L
Properties Filtration method Suction filtration
Membrane shape Hollow thread (capillary type)
Housing material ABS
Cassette dimensions 620㎜ x 1530㎜
Cassette mass (Dry) 10kg (Wet) 20kg
Terms of use Operating pressure (Recommendation) -35kPa _or more
Water temperature 5 – 40℃
pH 3 – 11

* Please note that oil and silicone defoamers may block the membrane.

Processing flow

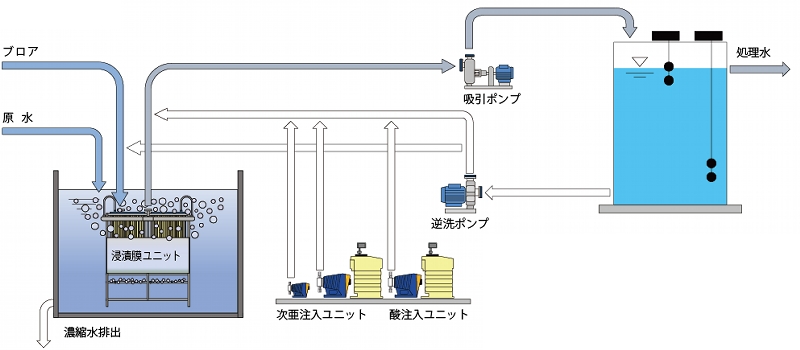

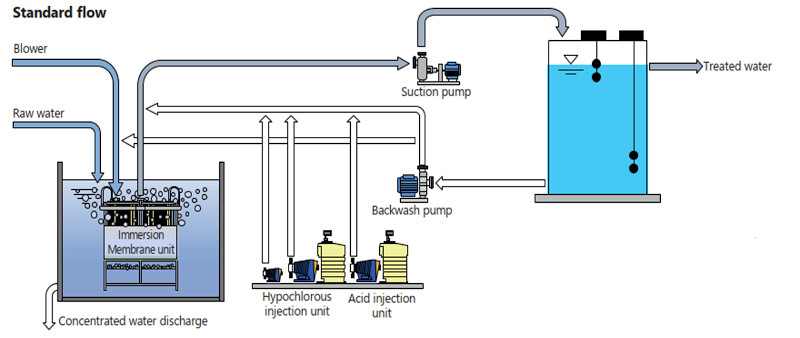

Physical processing

Amount of treated water 100 m3/d (4.1 m3/h) 500 m3/d (20.8 m3/h) 1000 m3/d (41.6 m3/h)
Membrane composition 3 modules x 2 units 15 modules x 2 units 15 modules x 4 units
Total membrane area 120 m2 600 m2 1200 m2
Approximate dimensions of the aquarium 1400 × 1050 × 2900H 3100 × 1400 × 3100H 3100 × 2300 × 3850H
Cleaning items Frequency (reference)
Backwash 1 time / 30 minutes
Hypochlorite CEB Once a week
Hypochlorite CIP Once a month
Acid CIP 1 time / 2 months
* The frequency may increase _or decrease depending on the raw water quality _and operating conditions.

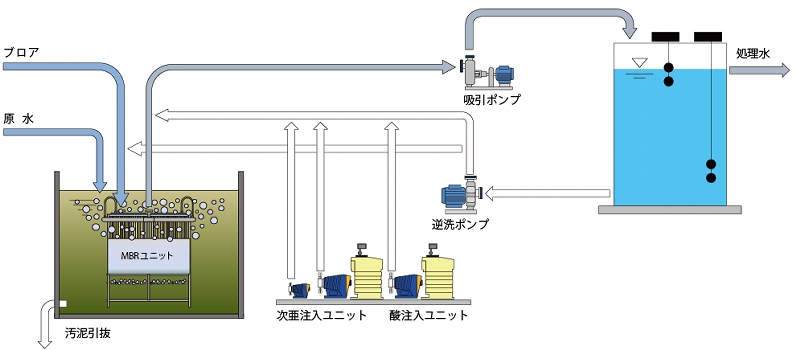

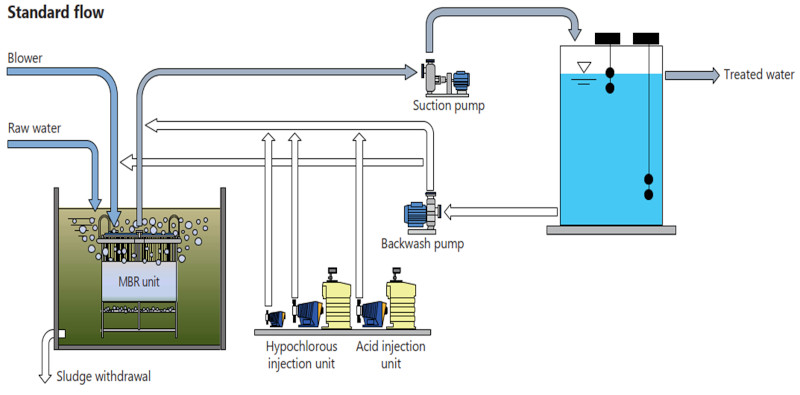

MBR

Amount of treated water 100 m3/d (4.1 m3/h) 500 m3/d (20.8 m3/h) 1000 m3/d (41.6 m3/h)
Membrane composition 4 modules x 4 units 18 modules x 4 units 24 modules x 6 units
Total membrane area 320 m2 1440 m2 2880 m2
Approximate dimensions of the aquarium 4200 × 1900 × 2650H 5900 × 2950 × 2650H 8600 × 3550 × 2650H
Cleaning items Frequency (reference)
Backwash 1 time / 0.5-1 day
Hypochlorite CEB 1 time / 3-7 days
Hypochlorite CIP Once / 1-2 weeks
Acid CIP Once / 2-4 weeks
* The frequency may increase _or decrease depending on the raw water quality _and operating conditions.
