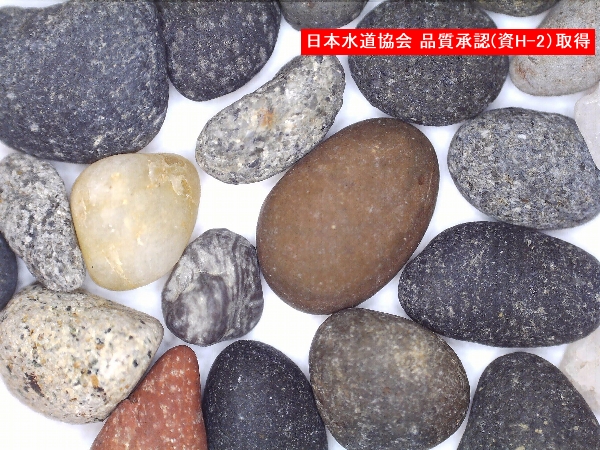

Filter gravel
Filter gravel is used as a support material for granular filter media such as filter sand and anthracite, which are the media that actually perform filtration. The filter gravel not only prevents the filter media from flowing out to the lower water collecting device when passing water, but also plays an important role in evenly distributing the wash water flowing into the filter pond during backwashing. By sequentially stratifying 3 to 6 types of filter gravel with a large particle size, it prevents drift and non-landing of filtration.
Specification
| Name | No. 4 | No. 5 | No. 6 | No. 7 | No. 8 | No. 9 |
|---|---|---|---|---|---|---|
| Particle size | 2-4mm | 4-8mm | 8-12mm | 12-20mm | 20-30mm | 30-50mm |
| Within particle size (%) | 85% more | |||||
| density | 2.50g/cm3or more | |||||
| appearance | Clean, granular | |||||
We also manufacture products of the specified size upon request.
Packing
Packaging unit：PE bag (20L), flexible container bag( 0.6m3 included)
* Pallets can be stacked upon request.
| When ordering, specify the specifications, quantity, packing style, _and presence / absence of pallets. If you would like a JWWA certified product, please let us know. |
Mame knowledge

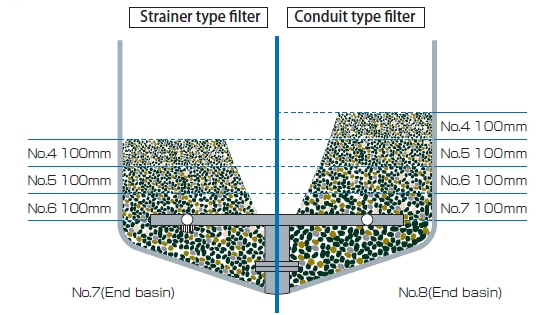

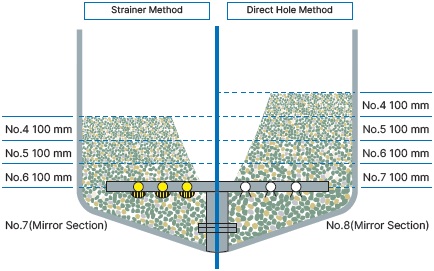

Example of filtered gravel stratification
The size and height of the filtered gravel are selected according to the upper filter material and the lower water collection method. As a representative, we will introduce the case of using a branch pipe for the lower catchment part of the filtered gravel used for two-layer filtration of anthracite and filtered sand, divided into the strainer method and the straight hole method.
