PVC tank
✔ It can be used for all purposes as a storage tank for chemicals.
✔ Made of polyvinyl chloride with excellent chemical resistance.
✔ Equipped with a level gauge that shows the liquid level at a glance.
✔ Supports additional processing of nozzles, pump mounts, stirrer mounts, etc.
✔ Anchor fixed seat can be attached.
Features
● All the models are made of Rigid Polyvinyl Chloride Plates to ensure stability and performance.
● The outer-internal ribbed construction provide for ruggedness.
● The tank may be installed on a pump mount, agitator base, flange, level switch base, reinforcement, etc. depending on operating conditions.
specification
| Model | Material | Dimensions(mm) | Capacity(L) | Standard accessories | Weight (kg) | Applicable pump installation |
|---|---|---|---|---|---|---|
| PVC-50 | PVC | □372×460H | 50 | Chemical filler port (w/ lid) Level gauge Drain plug Pump mount (for 1 unit) |
approx. 8 | CM-V CM-Y CM-G (PVC-100 or_ above) MP-L ProMinent electromagnetic diaphragm pump (Beta and_ gamma) |
| PVC-100 | □450×610H | 100 | approx. 14 | |||
| PVC-200 | □499×950H | 200 | approx. 23 | |||
| PVC-300 | □600×950H | 300 | approx. 35 | |||
| PVC-500 | □760×1010H | 500 | approx. 54 |
* Other customized tanks are also available on request.
*Install the chemical tank in a place with ambient temperature and liquid temperature of 0 to 40℃ where it is not exposed to direct sunlight. Applicable liquid specific gravity 1.2 max., specially manufacturing for liquid specific gravity 1.67 max.
*We are pleased to manufacture other chemical tanks on request. Please contact us.
Dimensions w/pump mount (standard)
| Tank capacity | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 50L | 372 | 280 | 200 | 85 | 460 | 30 |
| 100L | 450 | 315 | 250 | 610 | ||
| 200L | 499 | 350 | 300 | 100 | 950 | 31 |
| 300L | 600 | 390 | 330 | |||
| 500L | 760 | 445 | 360 | 165 | 1010 | 32 |
| Part number | name | Material | Quantity | Notes |
|---|---|---|---|---|
| 1 | Chemical tank | PVC | 1 | |
| 2 | Pump Mount | PVC | 1 | |
| 3 | Hose guide | PVC | 1 | I.D. φ38 |
| 4 | Chemical Filler Port |
PVC | 1 | I･D Φ125 |
| 5 | Level Gauge | PVC | 1 | (Clear PVC) |
| 6 | Drain plug | PVC | 1 | R 3/4 |
| 7 | Agitator Base | PVC | 1 | Only for tank w/agitator base |
| 8 | Agitator Port | PVC | 1 | |
| 9 | Tank Fixture | SS or SUS304 | 4 | Option SS:Silver color |

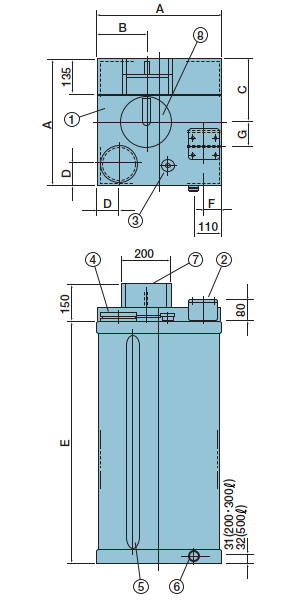

Dimensions w/ pump mount + agitator base (semi-standard)
| tank capacity | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| 200L | 499 | 200 | 230 | 100 | 950 | 60 | 100 |
| 300L | 600 | 250 | |||||
| 500L | 760 | 380 | 260 | 165 | 1010 | 80 | 150 |

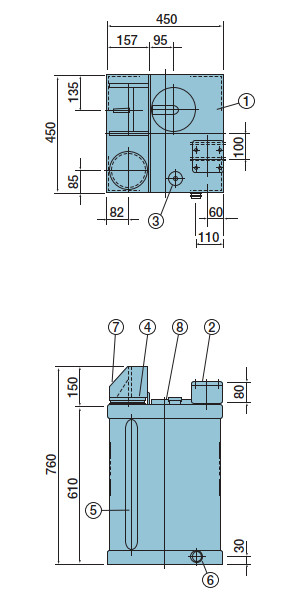

| 100L | 200L～500L | Tank fixture(Option) |
|---|---|---|
 |
 |
Standard material SS Material SUS304 available  |
