What is ProMix?

When injecting a sterilizing agent _or a flocculant into a filter, a general system always injects a fixed amount _or proportionally.
However, the required chemical injection amount of the actual machine will change depending on the condition of the raw water pump _and changes in the raw water quality.
In other words, constant volume injection _and unified proportional control injection cannot respond to these changes.
Therefore, by adding another element (for example, turbidity) to the control trigger in addition to the measured value of one element (for example, flow rate), precise drug injection control that was not possible with conventional equipment becomes possible.

ProMix is Tohkemy’s original drug injection system specializing in water quality control.

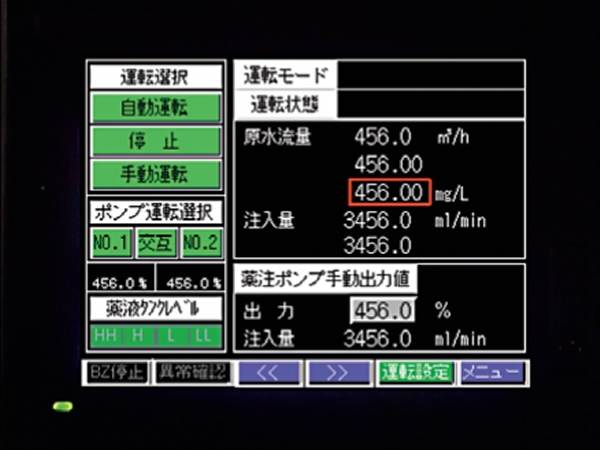

Excellent operability with touch panel type

Automatic calculation control of required chemical injection amount from raw water flow rate and water quality concentration

* Flow rate proportional
* Flow rate proportional + feed forward
* Flow rate proportional + feedback (proportional or PID)
* Flow rate proportional + linearize
You can select from the above four types of control methods, and optimal control is possible for your application.

Supports remote input of control target values

Even if the target value changes due to process steps, etc., the target value can be changed with the 4-20mA DC analog signal on the upper board.

Application example

* PAC chemical injection control for filtration of river water and shallow wells
* Control of pH regulator drug injection for applications with large flow rate fluctuations
* Hypochlorite injection control for large applications with variable flow rates

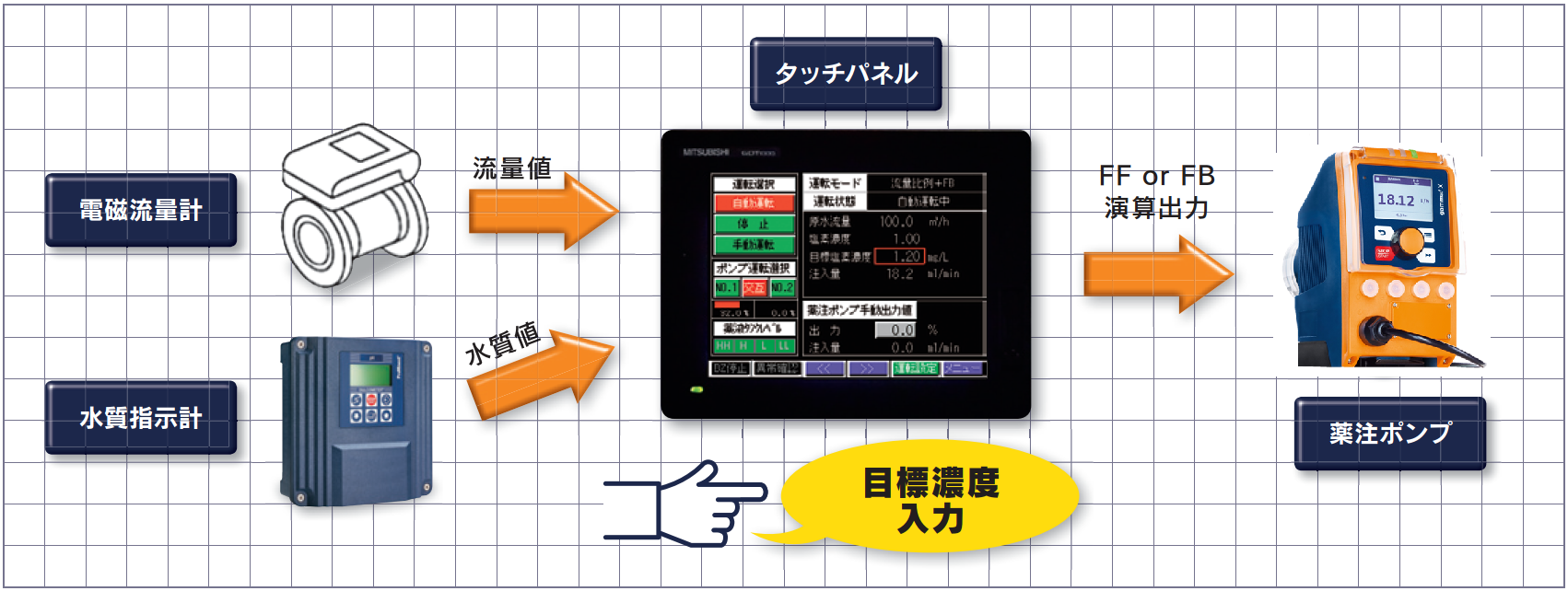

Flow rate proportional + feed forward or PID feedback (type E)

<Flow rate proportional + feed forward>
The water quality is measured before the chemical injection point, _and the difference from the target value is the chemical injection.
Example) If the water quality concentration in the previous stage is 0.3 mg / L _and the target value is 0.5 mg / L, perform drug injection at 0.2 mg / L (× correction coefficient).

<Flow rate proportional + PID feedback>
The water quality is measured after the drug injection point, _and the drug injection rate is controlled to approach the target value while changing it by proportional control or PID control compared to the target value.

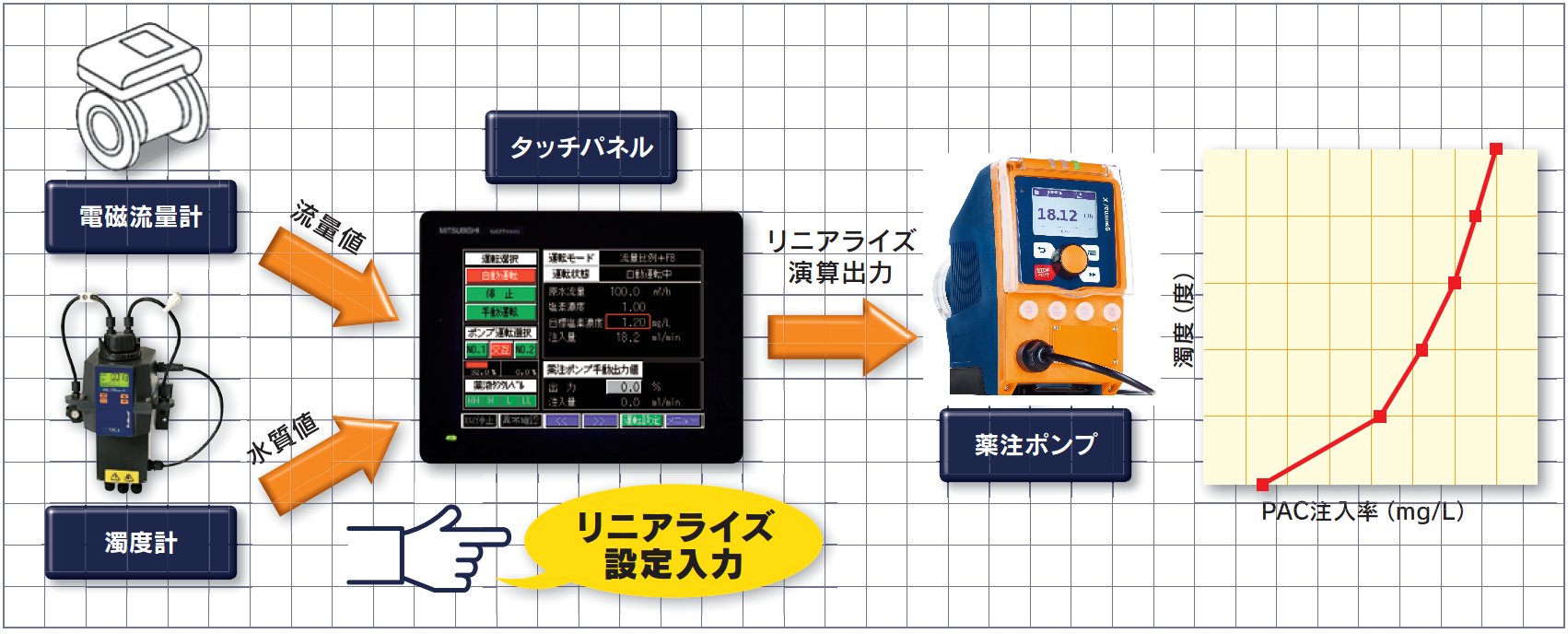

Linearize control (type D)

<Linearize control>
An injection method that changes the injection rate in a line graph rather than simply changing the injection rate proportionally according to the water quality value.

control method	ProMix-E type: Flow rate proportional / Flow rate proportional + FF / Flow rate proportional + FB
	ProMix-D type: Flow rate proportional / Flow rate proportional + Linearize
Screen specifications	Touch panel 5.7 inch TFT color LCD
Corresponding metering pump	Gamma X / XL / MP-L / Sigma Control (up to 2 pumps of the same type)
Chemical tank	TXS type PE tank　25L / 50L / 100L ※
Flowmeter input	○	4-20mADC Analog input (load resistance 250Ω)
Water quality meter input	○
External target value input	○
Chemical injection flow meter input	○
Alarm output	Major failure / minor failure (non-voltage a contact)　×2
Trend log function	Yes (SD card recording)
Power supply	100VAC _or 200VAC　50/60Hz

* Two pumps cannot be installed on the TXS-25 type.
