Vertical (small NTR)

* Corresponds to changes in the purpose of agitation such as viscosity fluctuations in small volumes
* The rotation speed can be changed manually at the site while checking the agitating status.

Features

* Corresponds to changes in the purpose of agitation such as viscosity fluctuations in small volumes
* The rotation speed can be changed manually at the site while checking the agitating status.
* By using the ring cone variable speed reducer, it is possible to shift from 0 rotation.

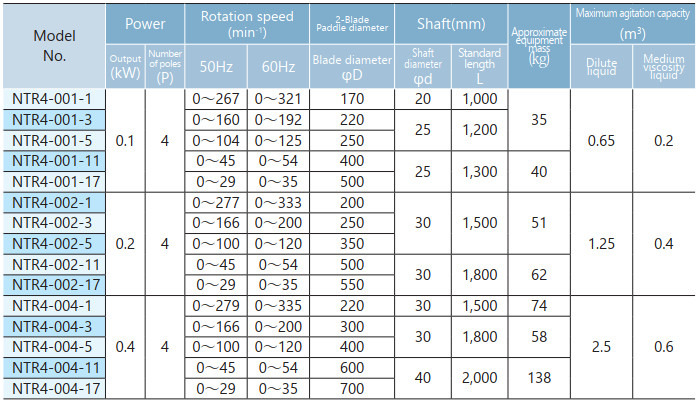

Standard specifications

* A ring cone variable speed reducer is used, and models with other rotation speeds can also be selected.
* The motor is a totally-enclosed outdoor motor made by Mitsubishi or a manufacturer-specific motor.
* The standard impeller is a 2 stages of 2-blade pitched paddle, but the blade shape may be changed depending on mixing purpose and specifications.
* Please contact us for detailed specifications and dimensions.
