Vertical (small NTG)
* Maintenance-free due to the sealed gear motor
* Compact and lightweight with gear motor
Features
* Maintenance-free due to the sealed gear motor
* Compact and lightweight with gear motor
* Ideal for floc formation, sedimentation prevention, agitation of viscous liquid

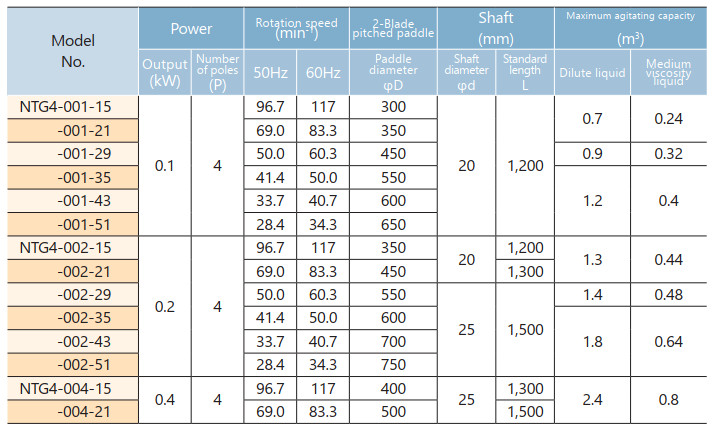

Standard specifications (gear motor reduction)
* Cyclo reducer (SUMITOMO ALTAX) is used for the gear motor, and_ reduction ratios other than those in the above table can also be selected.
* The standard motor is Sumitomo’s totally-enclosed fan-cooled outdoor motor with 3-phase 200V 50Hz, 200 / 220V 60Hz. A single-phase 100V is also available.
* The standard impeller is a 2 stages of 2-blade pitched paddle, but the blade shape may be changed depending on the purpose and_ specifications.
* The viscosity of dilute liquid is less than 0.1 Pa · s (100 cP), and medium-viscosity liquid is about 0.1 to 0.5 Pa · s (100 to 500 cP).
* Please select NTC model for 0.75kW or larger.

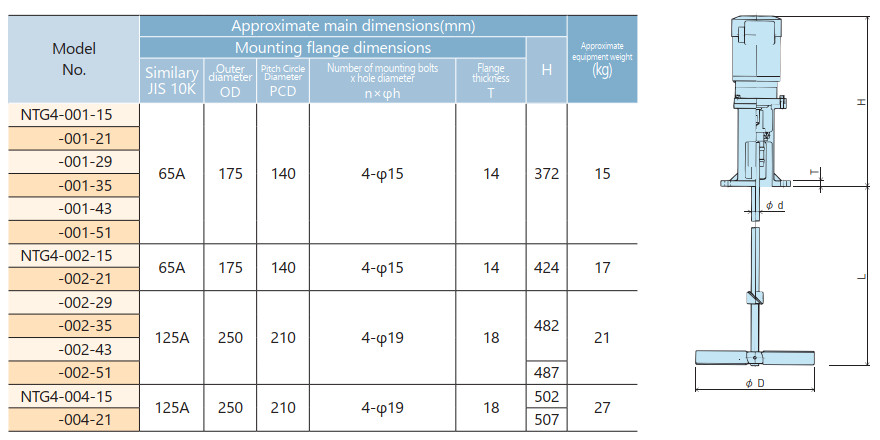

Dimension table
Common specification items
| Motor | 3-phase 200V 50Hz, 200/220V 60Hz 0.1kW: Totally-enclosed non-ventilated, 0.2kW ~: Totally-enclosed fan-cooled Single-phase 100V 50/60Hz: 0.1kW ~ 0.4kW |
|---|---|
| Standard accessories | Simple tools, instruction manual |
| Painting | Munsell 2.5G6 / 3 (motor : manufacturer’s standard color) |
* Different voltages such as 380/400/440V are also available.
