Vertical belt drive (small to large NTB)
* Available on a wide range of capacities from small to large (power: 0.1 to 22kW)
* Smooth and low vibration with V-belt drive
Features
* Available on a wide range of capacities from small to large (power: 0.1 to 22kW)
* Smooth and low vibration with V-belt drive
* Simple structure makes maintenance easy

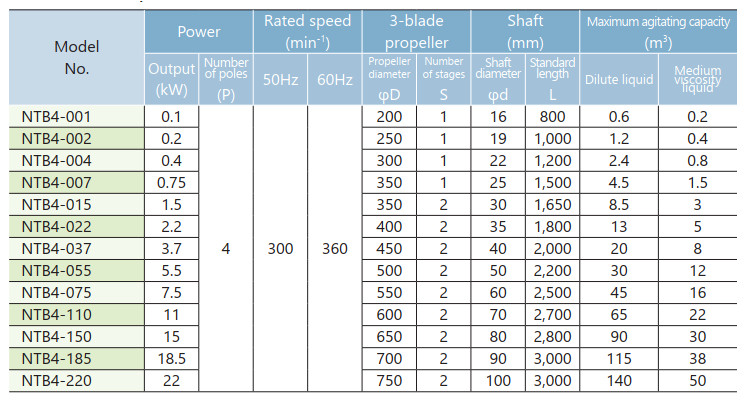

Standard specifications (V-belt reduction)
* A totally-enclosed fan-cooling outdoor motor made by Hitachi is used as standard.
* Possible to assemble the propellers with 2 stages for the models of 1 stage. (The diameter of propellers shall be smaller in case of 2 stages than the standard 1 stage.)
* Possible to assemble the shaft seal for 0.2kW or larger models.
* Possible to assemble the 6P motor for 0.4kW or larger models. Please contact us for further information.
* Racing (no-load operation) is strictly prohibited.
* Dilute liquids have a viscosity of about 0.1 Pa · s (100 cP), and medium-viscosity liquids have a viscosity of about 0.1 to 0.5 Pa · s (100 to 500 cP).

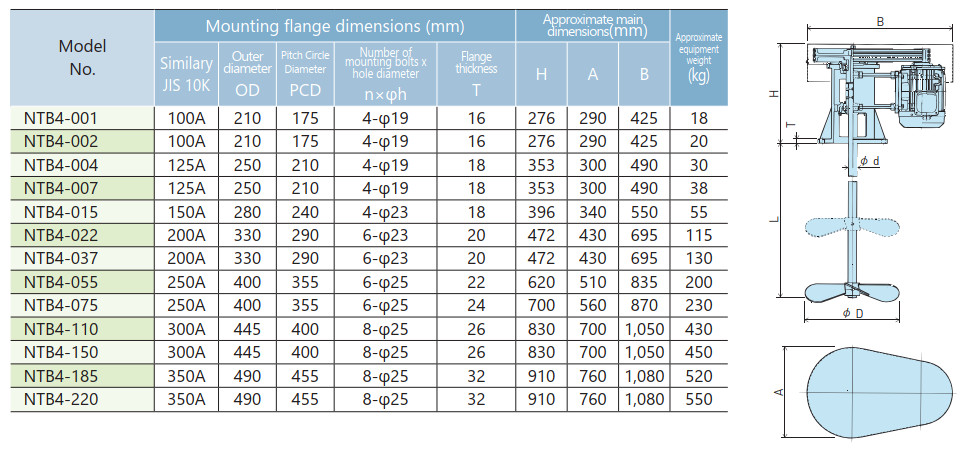

Dimension table
Common specification items
| Motor | 3-phase 200V 50Hz, 200 / 220V 60Hz 0.1kW ~ : Totally-enclosed fan-cooled |
|---|---|
| Standard accessories | Simple tools (Excluding large models), instruction manual |
| Painting | Munsell 2.5G6 / 3 (motor : manufacturer’s standard color) |
* Different voltages such as 380/400/440V are also available.
