Vertical (small NTA)
* Compact and lightweight model that supports small capacity agitation
* Smooth operation with the helical gear made of MC nylon.
Features
* Compact and lightweight model that supports small capacity agitation
* Smooth operation with the helical gear made of MC nylon.
* Maintenance-free for the reduction parts having a sealed structure filled with grease.

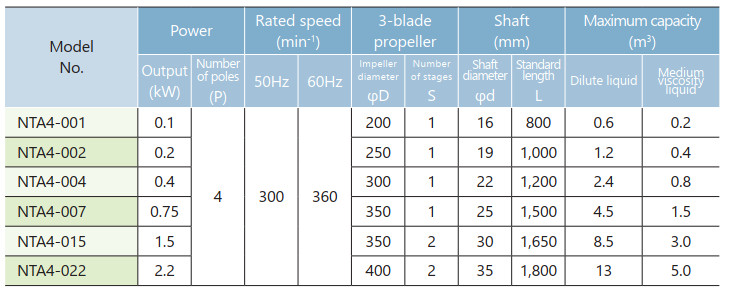

Standard specifications (gear-reduction)
* Totally-enclosed fan-cooled outdoor motor made by Hitachi is used as standard. (Totally-enclosed non-ventilated outdoor type for 0.1kW)
* For 100V , only 0.1kW outdoor specifications are manufactured.
* Possible to assemble the propellers with 2 stages for the models of 1 stage. (The diameter of propellers shall be smaller in case of 2 stages than the standard 1 stage.)
* Possible to assemble the shaft seal for 0.2kW or larger models.
* Possible to assemble the 6P motor for 0.4kW or larger models. Please contact us for further information.
* Racing (no-load operation) is strictly prohibited.
* The viscosity of dilute liquid is less than 0.1 Pa · s (100 cP), and medium-viscosity liquid is about 0.1 to 0.5 Pa · s (100 to 500 cP).

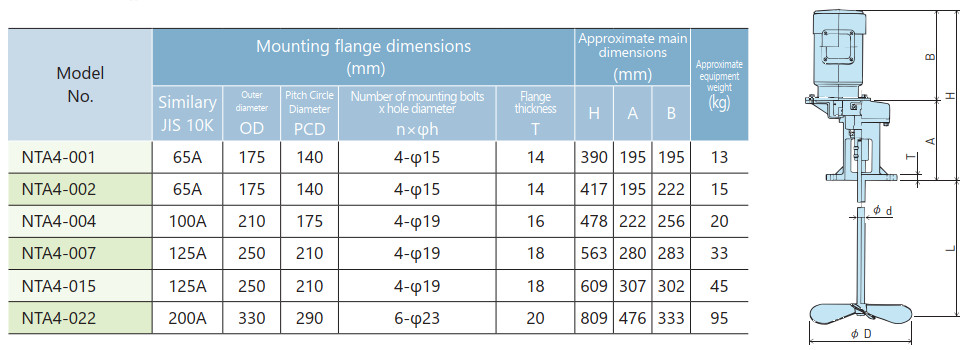

Dimension table
Common specification items
| Motor | 3-phase 200V 50Hz, 200 / 220V 60Hz 0.1kW: Totally-enclosed non-ventilated ,0.2kW ~: Totally-enclosed fan-cooled Single-phase 100V 50 / 60Hz: 0.1kW outdoor type only |
|---|---|
| Standard accessories | Simple tools, instruction manual |
| Painting | Munsell 2.5G6 / 3 (motor : manufacturer’s standard color) |
* Different voltages such as 380/400/440V are also available.
