Bottom type / side type belt drive (small to large NSB)

* Supports large-capacity homogeneous agitation and prevents sedimentation of low-concentration slurry with minimum power
* Multiple units of side type agitators can be installed in one tank

Features

* Supports large-capacity homogeneous agitation and prevents sedimentation of low-concentration slurry with minimum power
* Multiple units of side type agitators can be installed in one tank
* Smooth and low vibration with V-belt drive

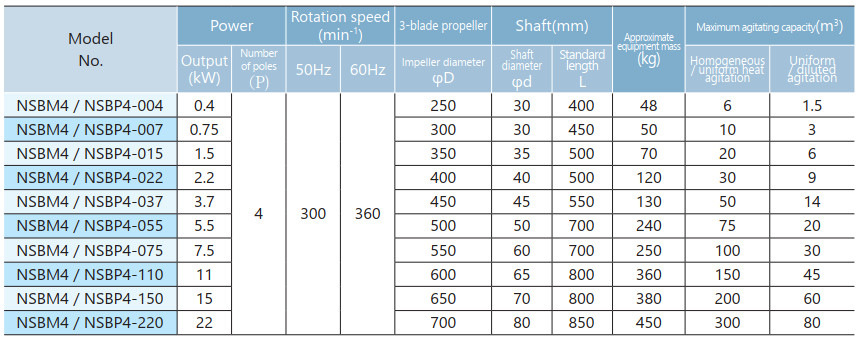

Standard specifications (belt reduction)

* Various shaft sealing methods and materials are available for different applications and liquid properties.
* Impeller: Propeller, 1 stage
* We select shaft sealing according to the agitating application and liquid properties.
* Possible to assemble the 6P motor.
* Please contact us for detailed specifications and dimensions.
