Coagulation sedimentation unit
A water treatment method in which suspended substances are flocculated with a flocculant and precipitated and separated by gravity.
Ideal for post-treatment of heavy metal-containing wastewater and biological treatment!
Use
● Treatment of wastewater containing heavy metals
● Pretreatment of filtration equipment (when raw water has a high concentration)
● Solid-liquid separation of biologically treated water, etc.
specification
Cylindrical tubular coagulation sedimentation treatment method
| Amount of treated water (m3/h) | ～1.5 | 1.5～2.5 | 2.5～4.0 | 4.0～6.0 |
|---|---|---|---|---|
| Water load area (LV) | ～1.0 | 0.6～1.0 | 0.6～1.0 | 0.65～1.0 |
| Approximate equipment dimensions L×W×H (m) |
4×2.1×3.4 | 4.4×2.3×3.7 | 4.6×3.0×4.1 | 5.3×3.3×4.4 |
| Power-supply voltage | Three-phase 200V × About 1.5kW | Three-phase 200V × About 1.5kW | Three-phase 200V × About 2.2kW | Three-phase 200V × About 2.5kW |
| Approximate operating weight (t) | 6.1 | 8.7 | 15.0 | 22.1 |
| Mud collection method | Gravity mud collection method | |||
| Required material quality | Reaction tank, coagulation tank, settling tank, stand SS400 | |||
| Painting | Inner surface：Non-tar epoxy resin coating after 2 types of cleaning Outer surface: After rust preventive coating, polyurethane resin paint topcoat |
|||
* Specifications are subject to change without notice for improvement.
* Please contact us before selecting as the amount of treatment may vary depending on the water quality.

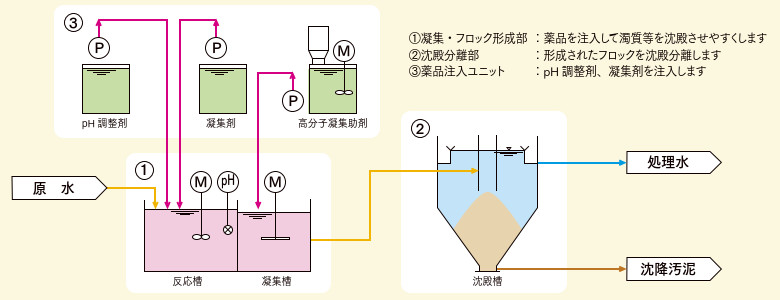

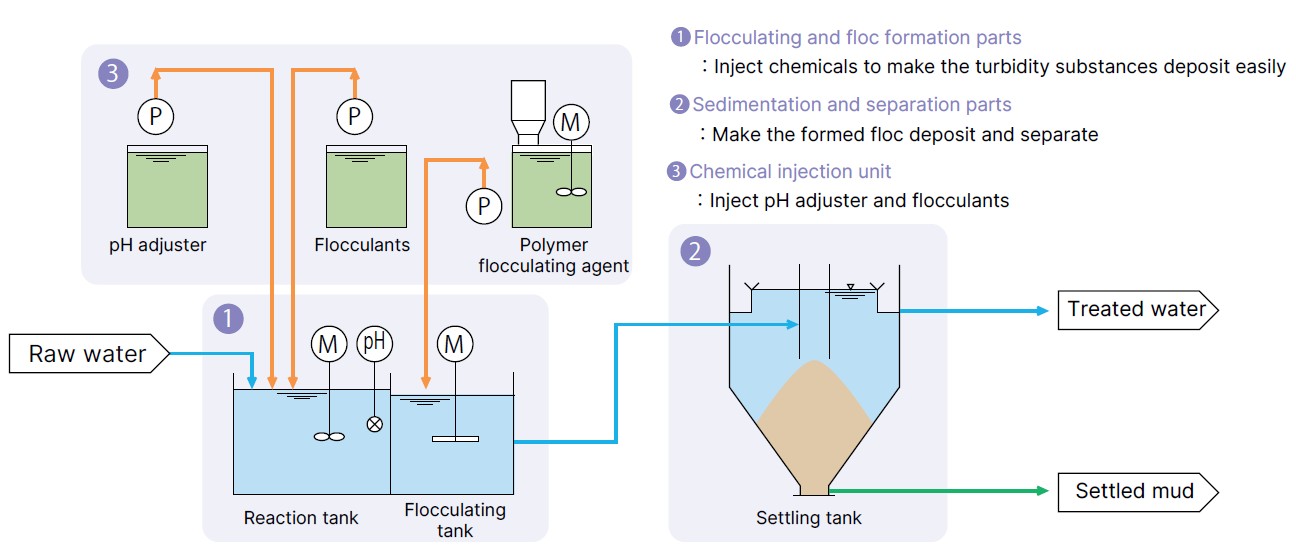

Processing flow
