Portable type (small NKA)
* Compact and lightweight model that supports small capacity agitation
* The angle can be adjusted with a special clamp for the optimum mixing effect
Features
* Compact and lightweight model that supports small capacity agitation
* The angle can be adjusted with a special clamp for the optimum mixing effect
* Maintenance-free for the reduction parts having a sealed structure filled with grease.

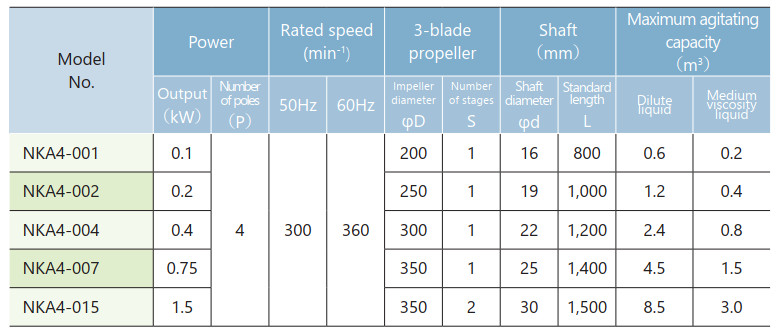

Standard specifications (gear-reduction)
* A totally-enclosed fan-cooled outdoor motor made by Hitachi is used as standard. (Totally-enclosed non-ventilated outdoor type for 0.1kW)
* For 100V specifications, only 0.1kW outdoor specifications are manufactured.
* Racing (no-load operation) is strictly prohibited.
* The viscosity of dilute liquid is less than 0.1 Pa · s (100 cP), and medium-viscosity liquid is about 0.1 to 0.5 Pa · s (100 to 500 cP).

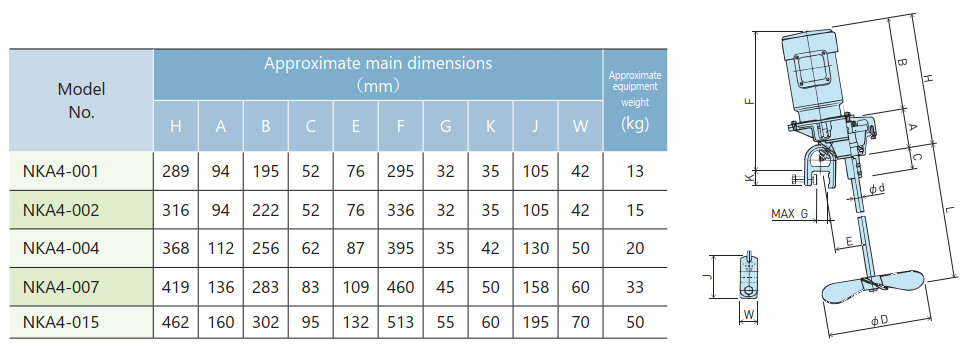

Dimension table
Common specification items
| Motor | 3-phase 200V 50Hz, 200 / 220V 60Hz 0.1kW: Totally-enclosed non-ventilated , 0.2kW ~: Totally-enclosed fan-cooled Single-phase 100V 50 / 60Hz: 0.1kW outdoor type only |
|---|---|
| Standard accessories | Simple tools, instruction manual |
| Painting | Munsell 2.5G6 / 3 (motor : manufacturer’s standard color) |
* Different voltages such as 380/400/440V are also available.
