Ceramics S / G

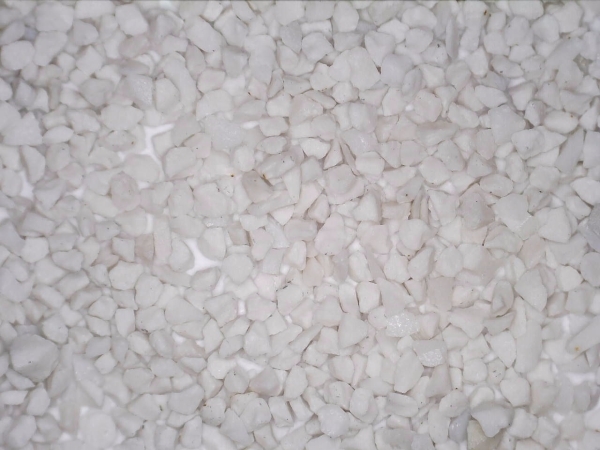

- Ceramics S -
A filter medium made from powdered feldspar, silica stone, clay, etc., and crushed from pottery baked at about 1,300 ° C to adjust the particle size. The density is about 2.3 to 2.5, but the apparent density is 1.0 to 1.2, which is lighter than the filtered sand, so it is a filter material that can save the amount of backwash water.
- Ceramics G -
During the rapid cooling and solidification of the third volcanic eruption rock, the material that became porous vitreous rock fragments due to the explosive release of the contained gas was used as the filter material. Although the density is as high as 2.4 to 2.6, the apparent density is as small as 0.65 to 0.75, and it is a lightweight filter medium with extremely high porosity and rich porosity.
Features
Ceramics S
* Filter media made by crushing fired pottery and adjusting the particle size
* It contains dense bubbles, has many voids, and has a long filtration duration.
* Anthracite and multi-layering are possible
Ceramics G
* Filter media with adjusted particle size of natural volcanic eruption rock
* More voids than Ceramic S
* Because it is very lightweight, you can save water for backwashing.
Use
● Circulation filtration of pool / bath
● Filtration of fishponds and viewing ponds
● Filtration of oil-containing wastewater and domestic wastewater
● In addition, various SS removal
Specification
Standard specifications
| Product name | S1 | S2 | S3 | G1 | G2 |
|---|---|---|---|---|---|
| Particle size | 1.2 – 2.0mm | 0.6 – 1.2mm | 0.3 – 0.65mm | 1.4 – 2.3mm | 0.6 – 1.4mm |
| 75% more | 75% more | ||||
| Apparent density | 1.0 – 1.2g/cm3 | 0.65 – 0.75g/cm3 | |||
| Appearance | Granular | ||||
Chemical composition
| Component | SiO2 | Al2O3 | Fe2O3 | CaO | MgO | K2O | Na2O | lg・loss |
|---|---|---|---|---|---|---|---|---|
| Ceramics S | 67.2% | 26.8% | 1.0% | 0.4% | 0.2% | 2.3% | 1.5% | 0.6% |
| Ceramics G | 73.9% | 19.3% | 2.1% | 0.3% | 0.2% | 2.2% | 1.9% | 0.1% |
(Caution) Since this product is a natural mineral, there are some differences in its chemical composition.
Packing
Packaging unit：S series PE bag (20L), flexible container bag( 0.8m3)
Packaging unit：G series PE bag (30L), flexible container bag( Craft paper bag 0.8m3 )
* Pallets can be stacked upon request.
| When ordering, please specify the specifications, quantity, packing style, _and the presence _or absence of pallets. |
