Filter Media for Water Treatment
Ferrolite MC / Ferrolite GC series
?There are many cases where the ground and river water contain iron and manganese owing to the geological environment. The water containing iron and manganese causes various problems when used as water for all industrial fields, not to speak of drinking water and city water. So the elimination of iron and manganese from the water is essential.
?Mainly for the purpose to treat iron and manganese of high concentration containing in ground water, we have developed the catalytic oxidation filter media for iron and manganese removal, Ferrolite MC/GC series.
Feature
1. High performance to remove iron and manganese.?Since the manganese content on the surface of media is much compared with conventional Manganese Sand, they exercise high performance to remove iron and manganese. As to removal of manganese in particular, while the administrative water standard prescribes that manganese content should be 0.05mg/L maximum, far less content can be achieved through these media.
2. Long life.?The treatment method of iron and manganese removal by use of these media is contact-oxidation with chlorine dosing. The particular chemicals coating the surface of media act as catalysts to make the target substance adhere to the surface of media and remove them. It is not adsorption method such as activated carbon but continuously regenerated. So it is not needed to replace the media in short intervals but can be used in long intervals.
3. Easy trial operation?Activation of filter media required before trial operation is easy and can be finished in a short time. It exercises high removal performance from the beginning.

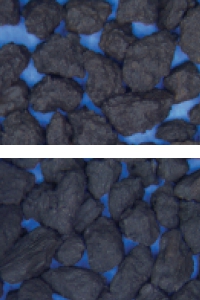

Standard products of our Ferrolite MC/GC series
Ferrolite MC series?It can be used for dual media filtration in combination with other filter media such as Anthracite Filter Media, Ceramics, etc. It can realize SS, iron and manganese removal from ground water together in one-filter vessel system according to circumstances, though it should be treated in two-filter vessel system so far.
Ferrolite GC series?Due to the light apparent specific gravity, the bed expansion is well in backwashing and washing water can be reduced. It results good use of water.
| MC series | GC series | ||||
|---|---|---|---|---|---|
| Product | MC1 | MC2 | MC3 | GC1 | GC2 |
| Size | 1.2 to 2.0mm | 0.6 to 1.2mm | 0.3 to 0.65mm | 1.4 to 2.3mm | 0.6 to 1.4mm |
| Content in size | 75% minimum | 75% minimum | |||
| App. specific gravity | 1.0 to 1.2g/cm3 | 0.65 to 0.75g/cm3 | |||
| Appearance | Granular | ||||
Packing for MC series: 20L in a PE bag, 0.8m3 in a flexible container bag
Packing for GC series: 30L in a PE bag, 1m3 in a flexible container bag (Palletizing available)
Note: Since ground water is various in quality on each site, it may be difficult to treat water appropriately. Contact us to design filtration rate, treated water quality, etc.
