Chemical Pump
CMK series (Control motor for stroke length control of chemical dosing pump)
Features
?The CMK series is additionally equipped with a control motor for the manual flow rate adjustment mechanism for automatic stroke length adjustment. It is used in combination with proportional control system equipment for feed forward control to turbidity, flow rate and feedback control to residual chlorine, pH, etc.
Pump model to be equipped
* CM-2Y?120Y,CM-4R?6R,CM-1L?3L
Possible to use in dual control system with speed control
* In combination with speed control by use of VS motor and invertor, it is possible to use in dual control system of flow rate and concentration, and possible to have wide dosing range.
Specifications
| Nominal model of control motor | K-4 |
|---|---|
| Model of control motor | MCH-1C |
| Manual setting devices | Equipped |
| Type of servo motor | Reversible condenser motor with brake |
| Voltage, Frequency | AC 100V, 50/60Hz |
| Output | 8W |
| Rated revolution | 1,450rpm (60Hz), 1,200rpm (50Hz) |
| Feed-back resistance | 200 ohms 1.5W |
| Operating time | 49 sec (60Hz), 58 sec (50Hz) |
| Operating angle | 0 to 300 degrees |
| Ambient temperature | -20 to +60 degrees C |
| Protections | Outdoor drip-proof |
| Color | Munsell 7B 2.5/7 |
| Weight | 5kg |

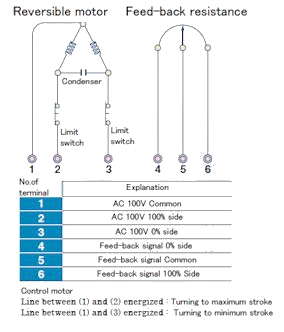

Control motor circuit

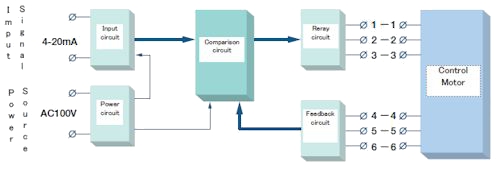

Proportional controller and Positioner block diagram
* Inform us of the following items when you place an order for CMK series.
| model | Use pump model | Chemical to be used | Power source | Connection | Others |
|---|---|---|---|---|---|
| CMK4 | CMK4-__Y/R/L | Name, concentration, temperature | __V, __-phase, __Hz | Hose diameter or flange | Remark |
