Rinsing water (sterilizing water) concentration control equipment [Residual chlorine]
- User
- Bottling plant in the Kansai region (Japan)
- Product used
-
Water quality measurement sensor (DulcoTest)
PE tank (TXS)
DulcoMeter (D1C)
Beta b (simple) - Overview
- Beverage maker PET bottle filling factory
- Category
- Water quality controller/sensor
Issues / requests

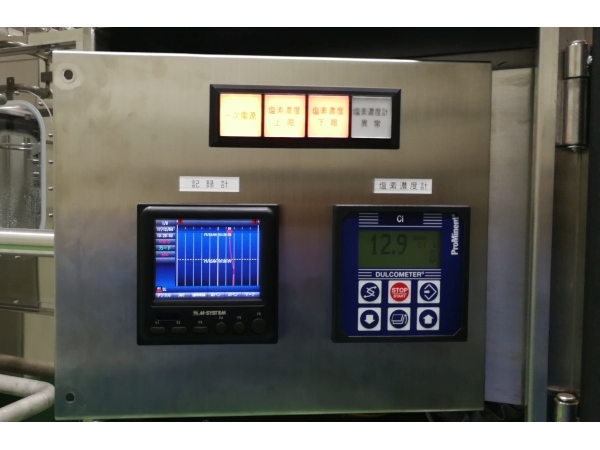

The sensitivity of the sensor was low, and the numerical values remained unstable (used by other companies). The investigation revealed that the conductivity of the rinser water was low, which caused the detection sensitivity to decrease with the type of sensor with exposed electrodes. It was unavoidable to take measures to increase the conductivity by pumping saline solution in front of the sensor. I am looking for a system that can measure the concentration stably without drug injection. ⇒ Monitor the residual chlorine concentration in the rinser water and control the drug injection so that it stabilizes at the required concentration. Monitor and record 24 hours a day with a digital recorder. Data logs can also be collected on an SD card.
Tohkemy's proposal
We proposed switching to a "diaphragm type" sensor in which the circumference of the measurement electrode is filled with an electrolytic solution, _and verified that the hypochlorous acid concentration can be measured stably without injecting saline solution. [Reason] At the electrode part of the sensor, the concentration is measured by observing the current flowing by "electrolysis". In the "membrane type", the electrodes are in the electrolyte, so the transfer of electrons (current generated) becomes stable. For this reason, stable concentration measurement is possible even for water to be measured that has "low conductivity" _or "changes in conductivity". * The method of directly measuring the electrodes in the water to be measured has many restrictions on conductivity _and water flow. * Injecting sodium hypochlorite will increase the conductivity of the water to be measured, but it may not always be possible to measure stably.
